CLASS OF CLASS OF INDIVIDUAL - Business System

Synonym

Business Artifact

Description

Abstract Concept

A Business System is a man made artifact ( Concrete Hardware System or Business Software System) which exposes Functionalityies and can produce Business Outcome Events.

A Business System performs System Processes and participates to System Processes or to Business Processes.

In System Processes, a Business System is always an active participant ( System Process Participant).

In Business Processes, a Business System is either an active participant ( Automated Participant) or an Instrument used by Org-Unit Types.

Artifact Nature of Business System: a Business System is either a Concrete Hardware System or a Business Software System
Systemic Levels of Business System: a Business System is either a Macro Business System, a Micro Business System or a Mezzo Business System

Functional Domain: SOF - Business System Operating Pattern

The SOF - Business System Operating Pattern domain defines concepts and relationships used to model how a Business System operates/functions in its Operating Eco-System..

External references

DAU Glossary - family-systems

OMG - UAF - ResourceArtifact

Russell Ackoff - Choice & Communication - Instrument

UCF Glossary - Business System

WordNet - Artifact

Super Types

Business Agent Type (from partition: Resource Agent Nature of Business Agent Type)

Business System Asset

Dictionary

Dictionary of SysFEAT concepts

Lexical Scope

Architecture Container

Framework Mapping

SysFEAT Outcome Centric Model : Business Systems
UAF - Strategy : ResourceArtifact
UAF - Operational Views : ResourceArtifact
UAF - Resource Views : ResourceArtifact

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Enabler Technology System	[*..0]	Technology System	Business System	Abstract Relationship
Specialized Business System	[*..0]	Business System	Business System	Abstract Relationship
Performed Business System Scenario	[*..0]	Business System Interaction Process	Business System	Abstract Relationship
Performed System Process	[*..0]	System Process	Business System	An application process performance establishes the relationship between an application and the some dynamic behaviors described as BPMN processes.
Fulfilled Requirement	[*..0]	Requirement	Business System Asset
Fulfilled Functionality	[*..0]	Functionality	Business System Asset
System Rule Enforcement	[*..0]	System Rule	Business System Asset
Realized Business Function	[*..0]	Conceptual Agent	Business Agent Type
Business Service Point	[1..1]	Business Service Interface	Business Agent Type	Abstract Relationship
Business Request Point	[1..1]	Business Service Interface	Business Agent Type	Abstract Relationship
Business Connection	[*..0]	Business Service Interface	Business Agent Type	Abstract Relationship
Resource Agent Part	[*..0]	Business Agent Type	Business Agent Type	Abstract Relationship
Resource Agent Store	[*..0]	Data Domain	Business Agent Type	Abstract Relationship
Resource Rule Enforcement	[*..0]	Resource Rule	Resource Operating Asset	Abstract Relationship
Realized Agent	[*..0]	Agent Type	Agent Type
Life Start	[*..0]	Agent Life Cycle Event	Agent Type	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agent Types existence.
Life End	[*..0]	Agent Life Cycle Event	Agent Type	A Life End is an End Type that denotes the type of event that signifies the end of an Agent Types existence.
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual	Abstract Relationship
Aggregate Specialization	[*..0]	Class of Bounded Individual	Class of Bounded Individual	Abstract Relationship An Aggregate Specialization is a Specialization that is refied as an Unbounded Member of a Class of Bounded Individual.
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 278675d65b252f4d.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Business Request Point	Agent Type::Request Point Operating Asset Type::Operating Exit	Business Service Interface
Business Service Point	Agent Type::Service Point Operating Asset Type::Operating Entry	Business Service Interface

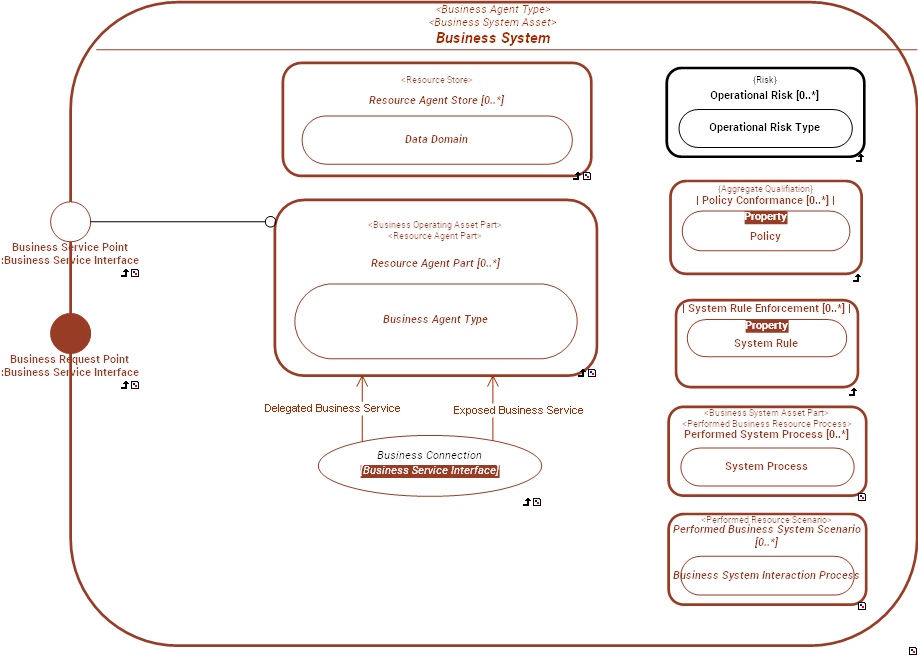

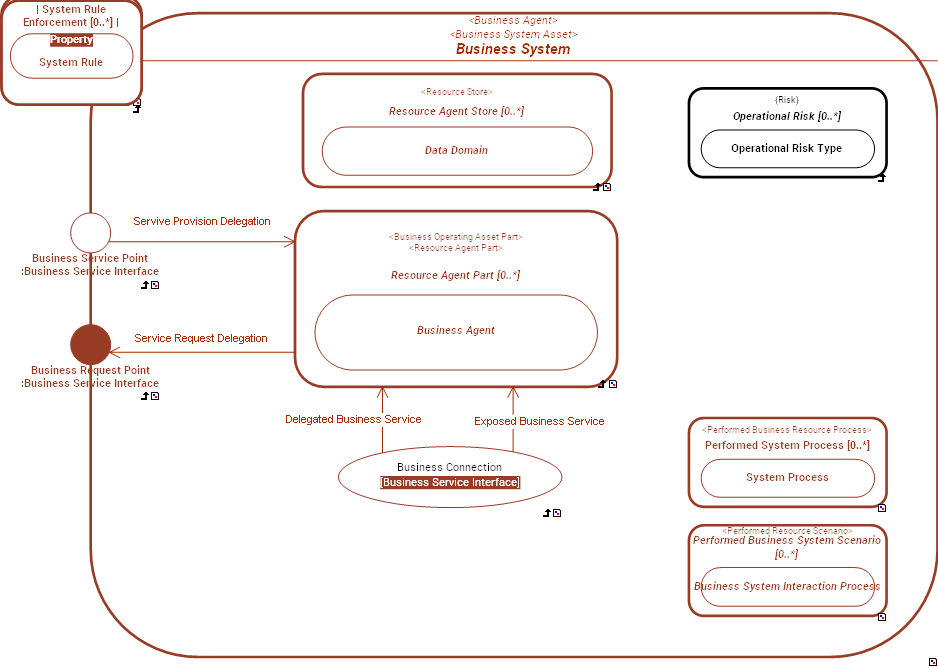

INTERNAL STRUCTURE

../images/278675d65b252f4d_8109832b5eb82c6f_i.png
