ENTITY CONNECTION - Ordering Connection

Description

Abstract Concept

An Ordering Connection is an Aggregate Block that defines possible connections between the Borders of two or more Bounded Aggregates.

Examples:

- Outcome Event.

- Service Interface.

Functional Domain: Compositionality

The purpose of the Compositionality family of concepts is to provide syntactic mechanisms that support the construction of composite Building Blocks.

Super Types

Aggregate Block

Dictionary

SysFEAT Upper Ontology

Lexical Scope

Block Lexical Scope

Container

Framework Mapping

Meta-Model Legend : Ordering Connection

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Source Connection End	[*..0]	Bounded Aggregate	Ordering Connection	Abstract Relationship
Connection End	[*..0]	Bounded Aggregate	Ordering Connection	Abstract Relationship
Target Connection End	[*..0]	Bounded Aggregate	Ordering Connection	Abstract Relationship
Connection Member	[*..0]	Ordering Connection	Ordering Connection
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].

LOGICAL FORMULATION

LOGIC-AGDA RDF

File: 23d5eaba68515533.agda

File: 23d5eaba68515533.rdf

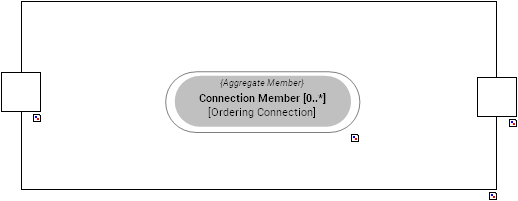

CONNECTION DIAGRAM

../images/23d5eaba68515533_f2660b82687116e3_i.png

CONNECTION ENDS

	Name	Type	Super Type
Source End	Source Connection End	Bounded Aggregate	Ordering Connection::Connection End
Target End	Connection End	Bounded Aggregate	Aggregate Block::Aggregate Member
Target End	Target Connection End	Bounded Aggregate	Ordering Connection::Connection End

SEMANTIC TAXONOMY

Sub-Types Super-Types
